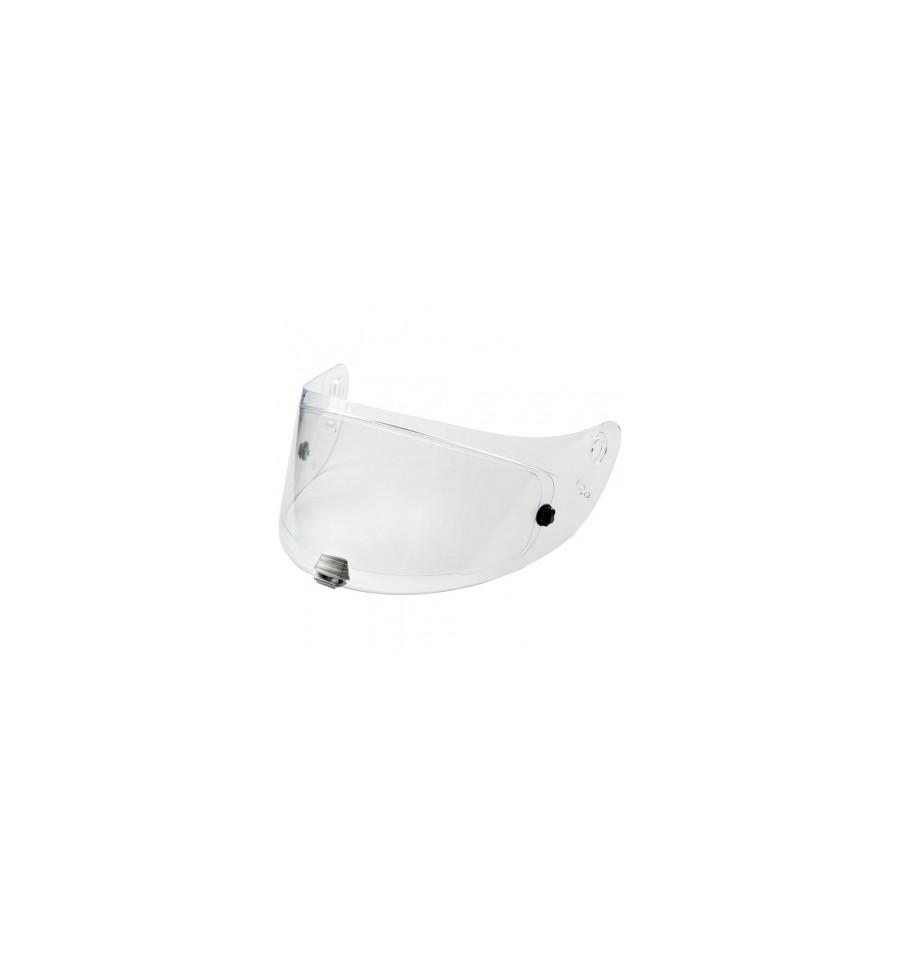

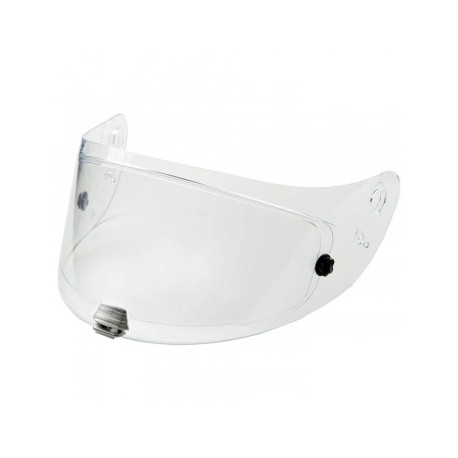

HJC HJ-29 Visir klart

HJC HJ-29 Visir klart, Skipfog förberett

Passar HJC RPHA 90
Skipfog är en lins som Du sätter på insidan av visiret för att slippa imma.

Removal

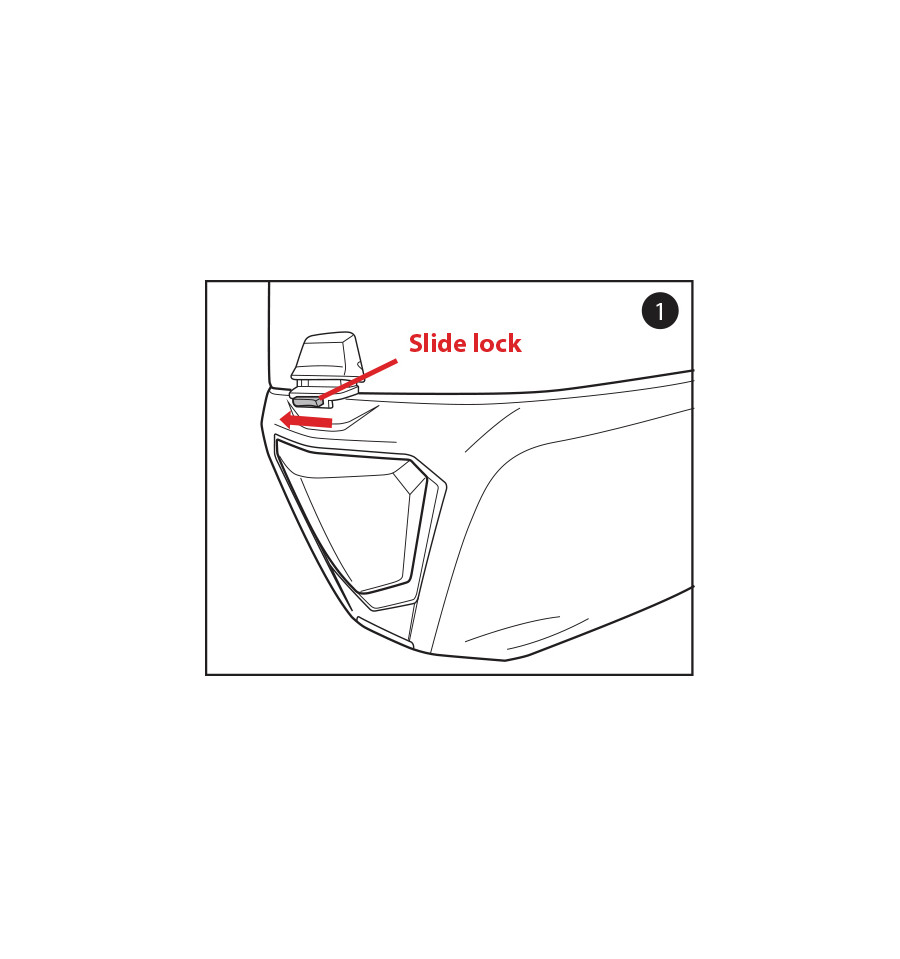

1. Move the slide lock to the left to disengage.

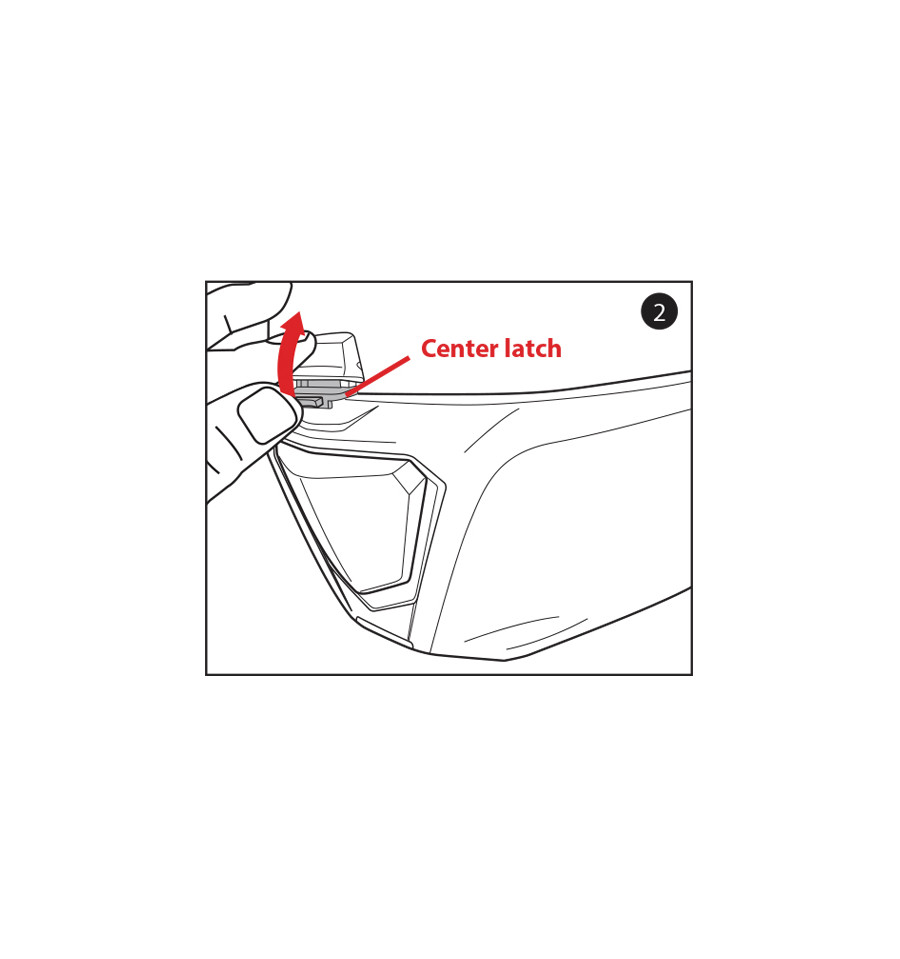

2. Squeeze the tab and lift up the center latch.

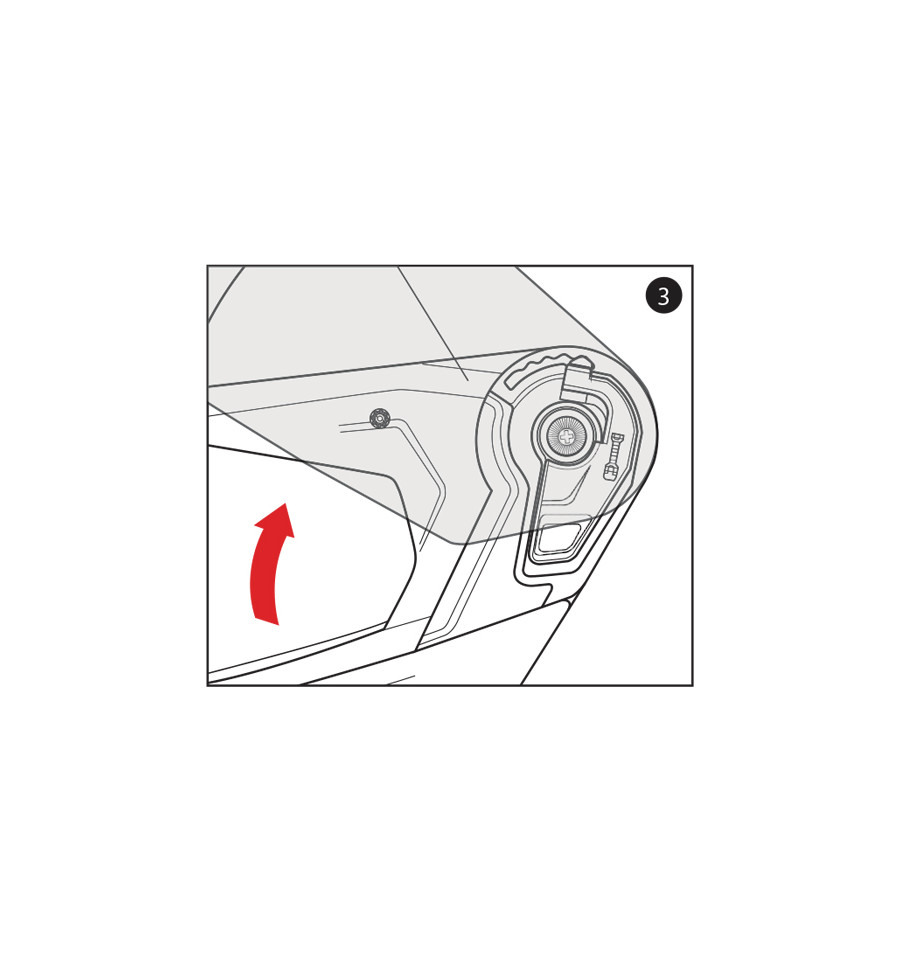

3. Open shield to the maximum open position.

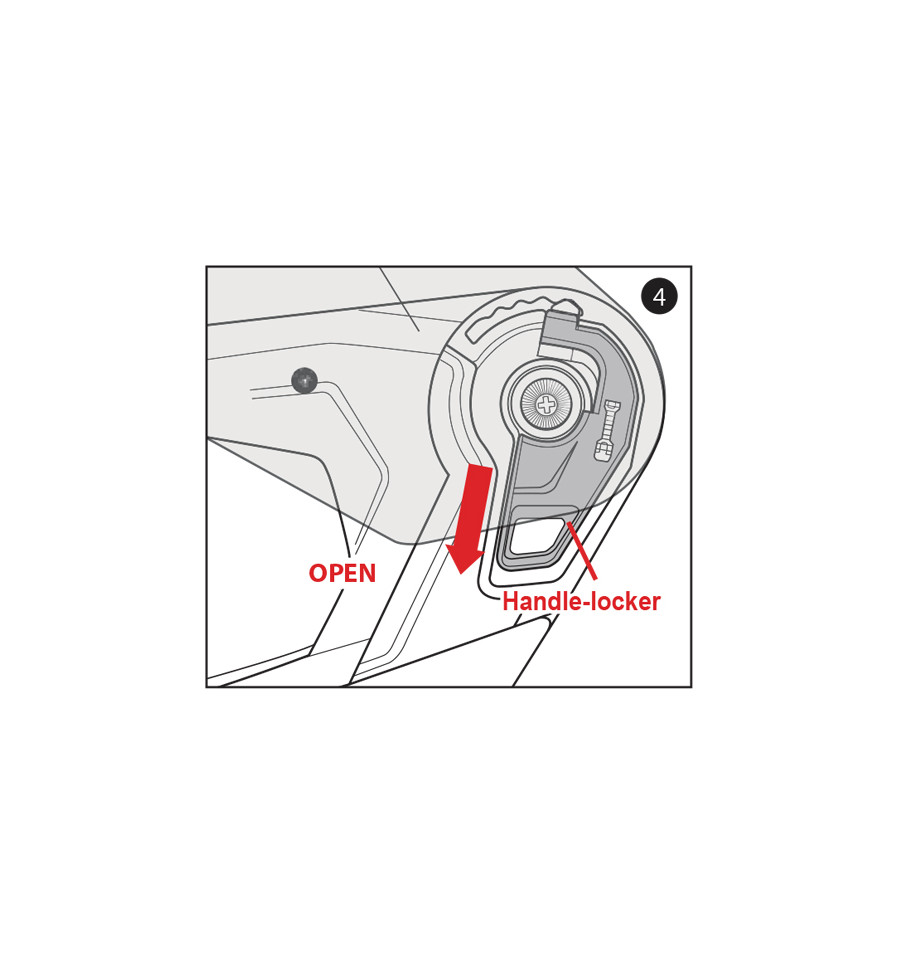

4. Push the handle-locker to the open position. The shield will be automatically released out of base ratchet mechanism.

Installation

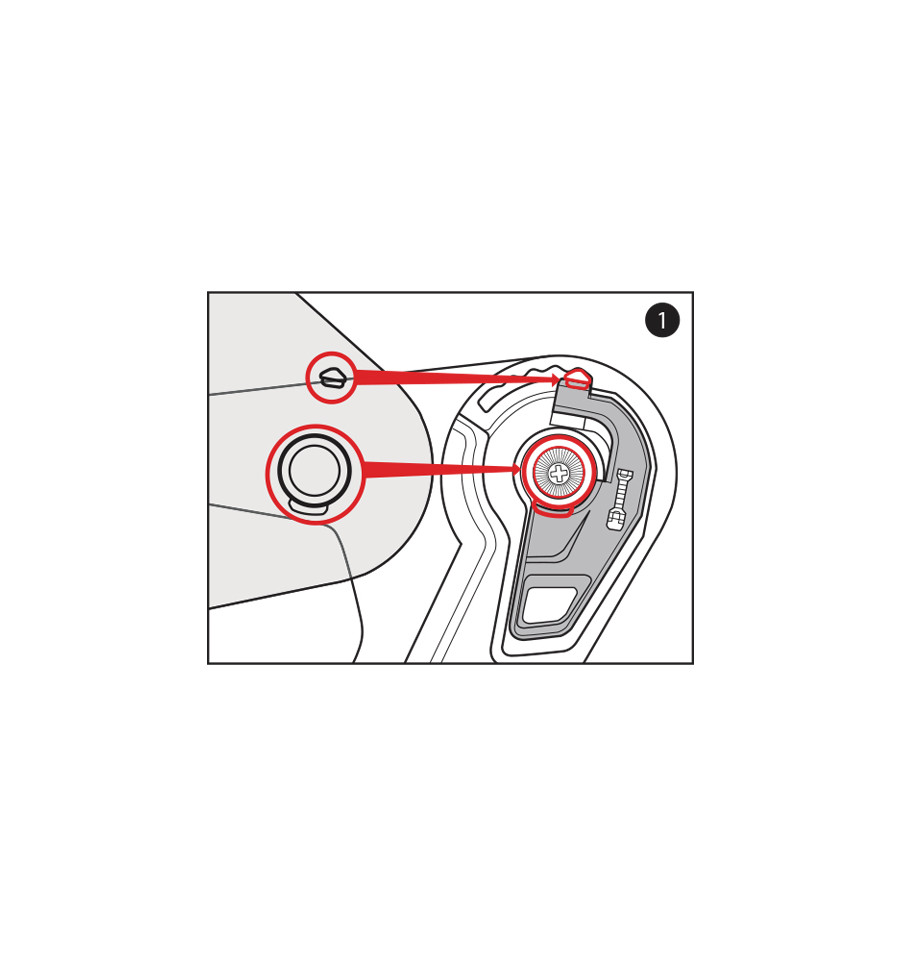

1. Align and insert the top of the shield guide into the plate-gear guide.

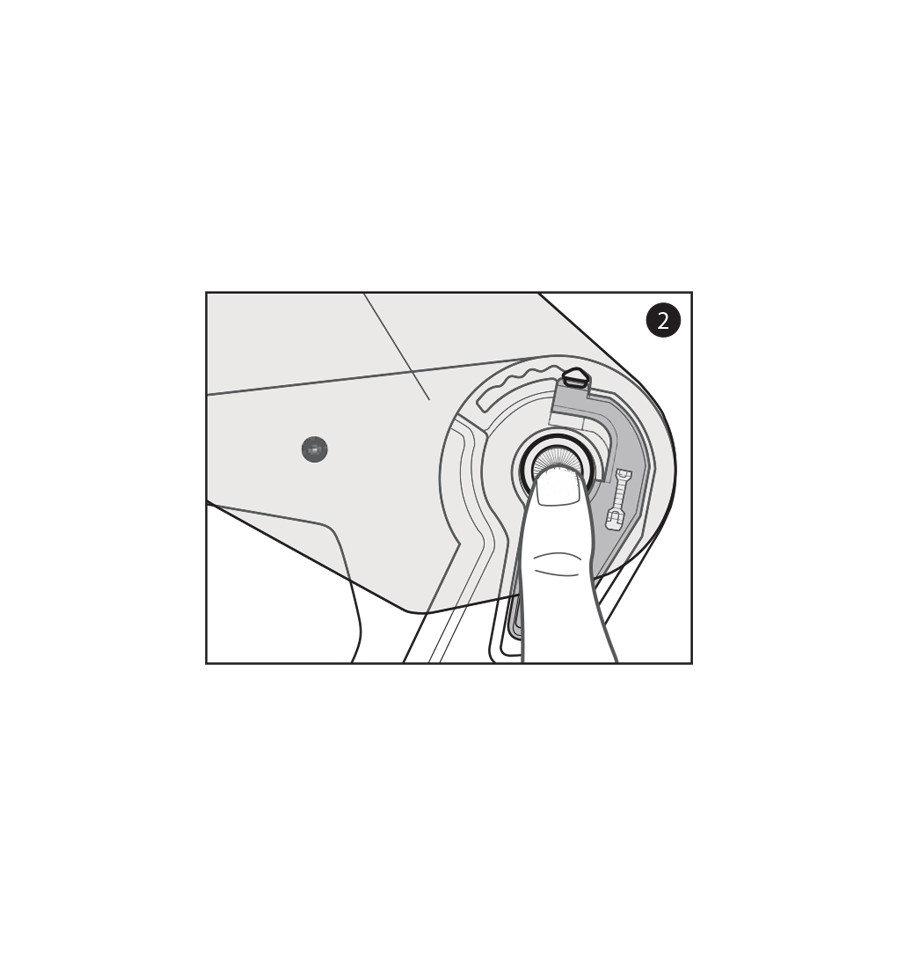

2. With the guides properly aligned, press the lower section of the shield into the plate-gear mechanism. The locking tab should pop into position, locking the shield into place.
